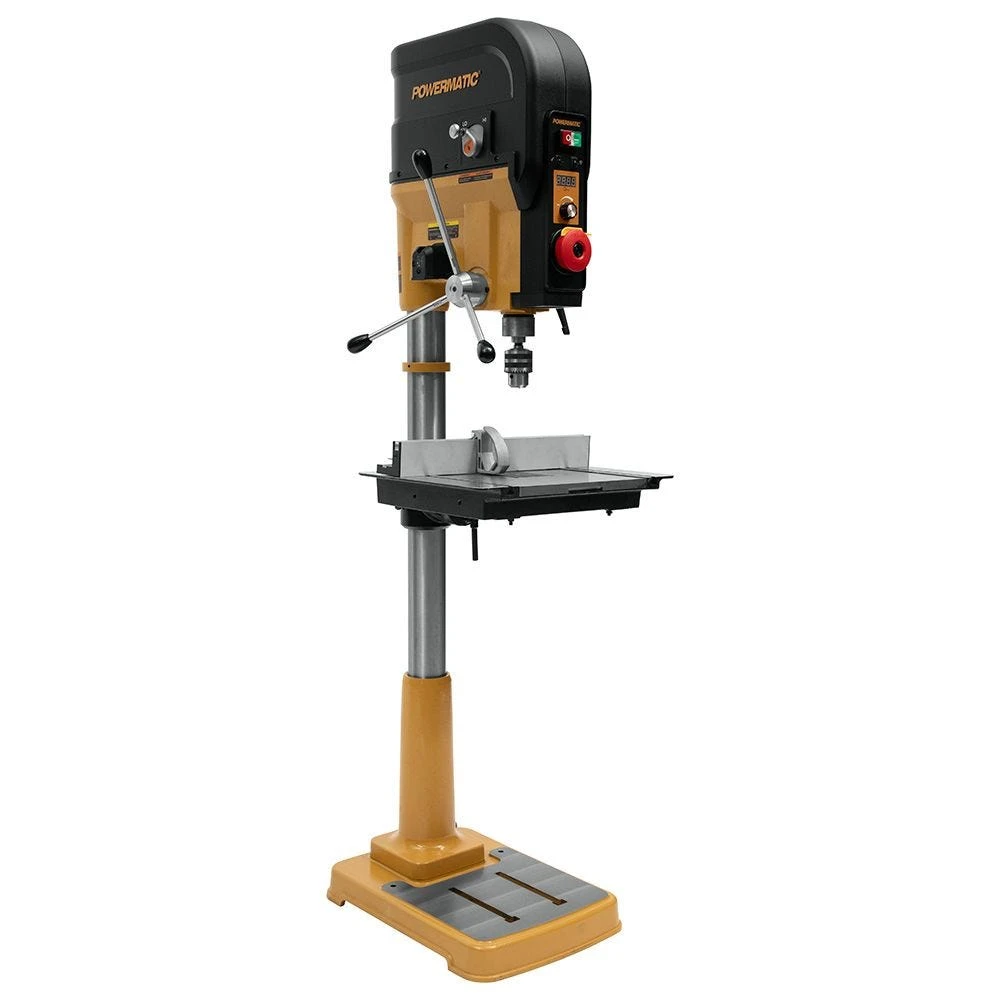

A geared drivetrain and two variable speeds ranging from 150 to 3600 RPM give the Powermatic PM2820EVS versatility not found in competing drill presses. Whether you use the low- or the high-speed range, the electronic variable speed ensures that no torque is lost. The PM2820EVS features one of the most versatile tables on the market, measuring a full 20-1/2” x 15-1/2” in size, with a large removable cast iron insert that lets you drill tall, bulky workpieces by feeding them through the bottom of the table. The table tilts left and right a full 90°, useful for drilling at extreme angles, and also for drilling into the end grain of long stock. The high-visibility laser pinpoints the exact drilling location, while the included fence and stop make production drilling ultra-efficient. Handles can be installed on the left or right according to your preference. Integrated LED light reduces shadows for optimal visibility.
Features:
- Gear driven power transfers torque consistently and efficiently for a wide range of materials
- Electronic variable speed means torque is not lost using either the higher or low speed settings
- Low speed setting ranges from 150 to 870 RPM; high speed setting ranges from 600 to 3600 RPM
- Easily visible digital readout gives users optimal control and feedback
- Oversized cast base offers outstanding stability for the 20” swing
- Handles can be reversed for left- or right-handed operation
- Large cast table adjusts to a range of positions and tilts to a full ninety degree position
- Includes the most versatile table on the drill press market—allows insert to be removed for better access to oversized pieces
- Includes Powermatic’s patented integrated depth stop for efficient drilling
- For unbeatable accuracy, the laser cross hairs provide precise tool point indication
| Brand | Powermatic |
|---|---|
| Manufacturer Part Number | 1792820 |
| Weight | 413.600000 |
| Tech Spec |
|
