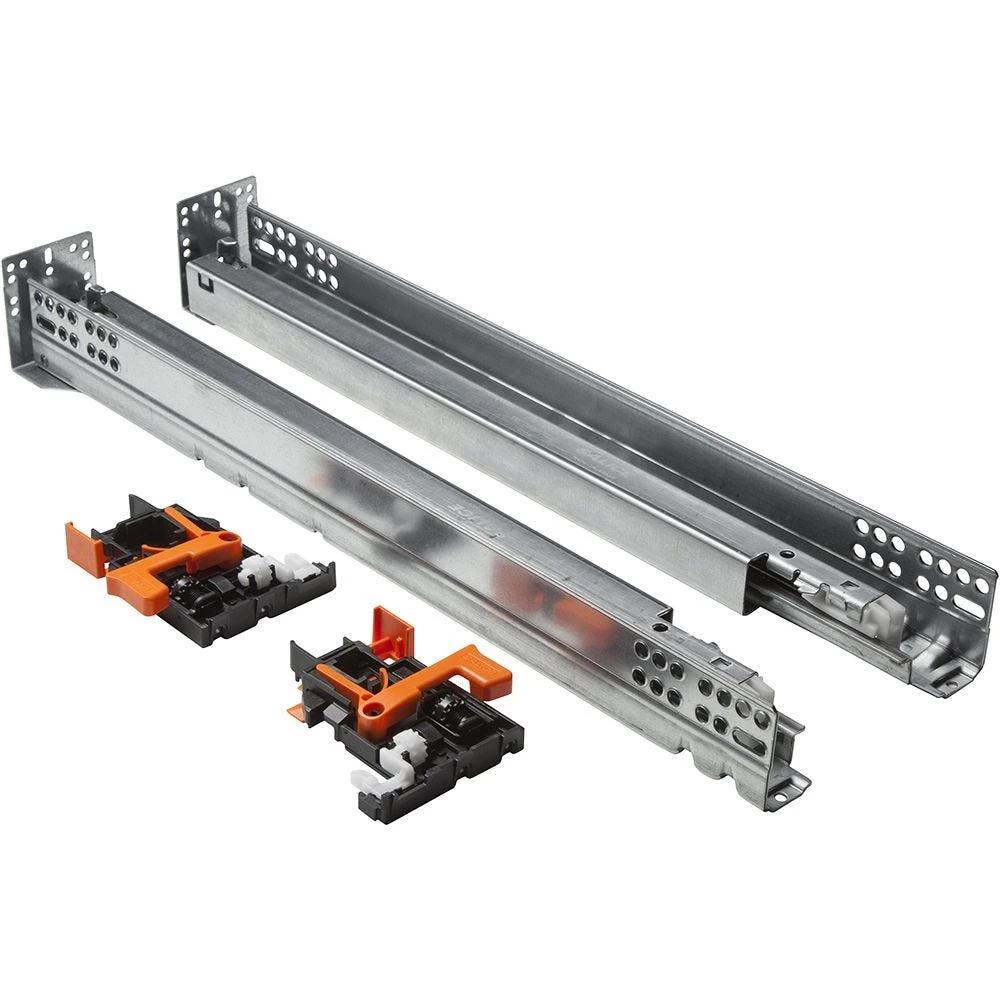

Salice Futura Push-to-Open Drawer Slides Complete Kit

Just apply pressure to the drawer front and the drawer opens enough for you to pull it open on glassy smooth ball-bearing slides. The full-extension action provides easy access to the contents of the drawer. Push-open slides are ideal for cabinets without knobs or pulls, either for a clean, modern look, or where space is a concern, such as for boats and motor homes. Since they hold themselves shut, you also won’t have to worry about drawers accidentally opening in a mobile environment. Salice Futura Push-to-Open Drawer Slides are fully concealed, with an undermount design that shows off the beauty of your workmanship.

Features:

• Push-open action allows you to open the drawer without the need for pulls or knobs
• Totally concealed undermount slides
• Ultra-smooth gliding motion with excellent rigidity and stability
• Included front release levers allow quick, easy drawer installation and removal
• Drawer height adjustment with 3 mm range (about 1/8″)
• Drawer slides accept #6 wood screws or 6mm euro screws

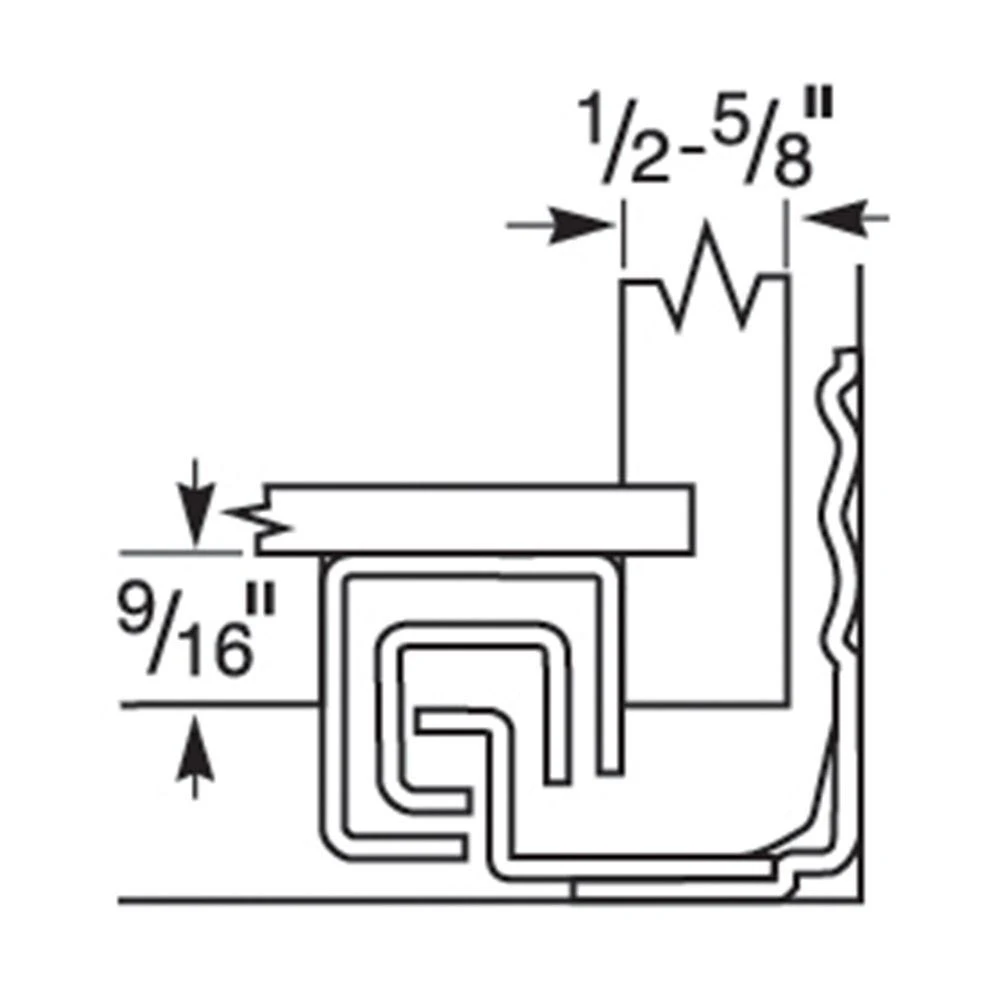

• Minimum drawer side thickness is 1/2″ (13mm)
• Maximum drawer side thickness is 5/8″ (16mm)
• Load rating is 75 lbs dynamic, 100 lbs static
• Drawer bottom must be recessed from bottom edge of drawer. Recess range is 3/8″ to 9/16″
• Length of drawer slide should equal the length of the drawer box
• To find the minimum cabinet depth, add 7/8″ to the length of the slide
• To find maximum cabinet depth (relevant only when using rear mounting brackets), add 2-1/2″ to the length of the slide
